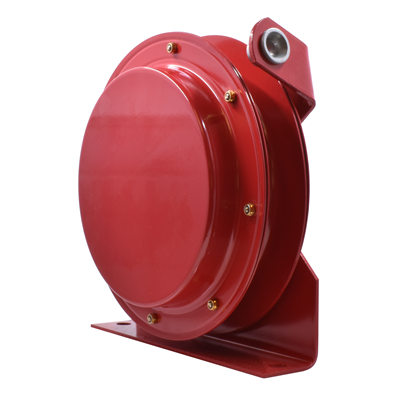

Heavy Duty Grounding Reels
Heavy Duty Grounding Reels

Alternative Views:

The Ametek static discharge and bonding reels provide for the retraction and compact storage cable and clamp assemblies. Designed to function under extreme environmental conditions. Our 50 and 75 feet models meet USAF specification MIL-R-83232B. To order reels with cable, please contact GTP directly.

For more information see Bulletin No. 54



Item# Item Name Qty Add
ML-2930-140 Static Bonding Reel 75' without Cable
ML-2930-15 Static Bonding Reel Assy w/ 50' Steel Cable
ML-2930-14 Static Bonding Reel Assy w/ 75" Steel Cable
ML-3416-20 Static Bonding Reel 100' without Cable
ML-3416-2 Static Bonding Reel Assy w/ 100' Steel Cable
Check the items you wish to purchase, then click


Features:


  • Electrical Resistance - 10 Ohms max between damp and mounting base


  • Life Cycle: tested to 5,000 cycles


  • Cable Retraction speed: 2-7 ft/sec


  • Finish:Comforms to ML-Std 808,red paint,Film Designation DG


  • Operating Temperture Range: -65ºF to 125ºF (-54ºC to 52ºC)


  • Storage Temperature Range: -80ºF to 160ºF (-62ºC to 71ºC)


  • NSN# 4930-04-356-0940 (ML-3416-2)


  • NSN# 4910-01-272-0282 (ML-2930-14)


  • NSN# 4930-01-150-3807 (ML-2930-15)




Dimensional Data:
  • Weight 20 lbs
